Titanium #
Orbitals and Energies #

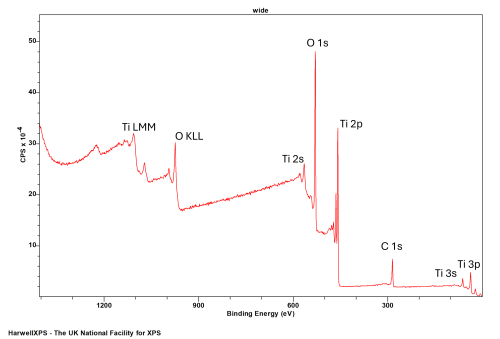

Note – these are listed in BINDING ENERGY
Ti 2p ≈ 454 eV
Ti 2s ≈ 566 eV
Ti 3s ≈ 59 eV
Ti 3p ≈ 34 eV
Common Overlaps for Ti 2p #
Ru 3p – Ta 4p – In 3d – Er 4s – Os 4p – Bi 4d
Theory and Background #
Experimental Advice #
TiO2 is readily reduced by Ar+ sputtering, forming suboxides.
Data Analysis Guidance #

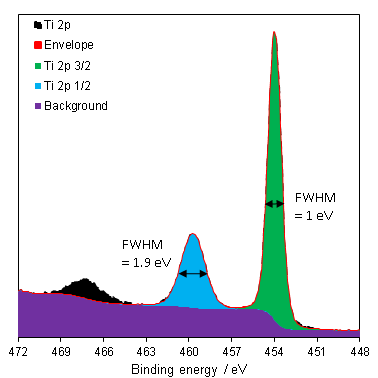

XPS of titanium is typically performed on the 2p region. Unlike later first row TMs Ti 2p does not undergo multiplet splittings in it’s compounds, due to a lack of unpaired d-electrons. Ti 2p does, however, feature asymmetric peak broadening due to a Coster-Kronig transition and so care should be taken when peak fitting. The Ti 2p1/2 may be fit with a FWHM wider than that of the Ti 2p3/2.

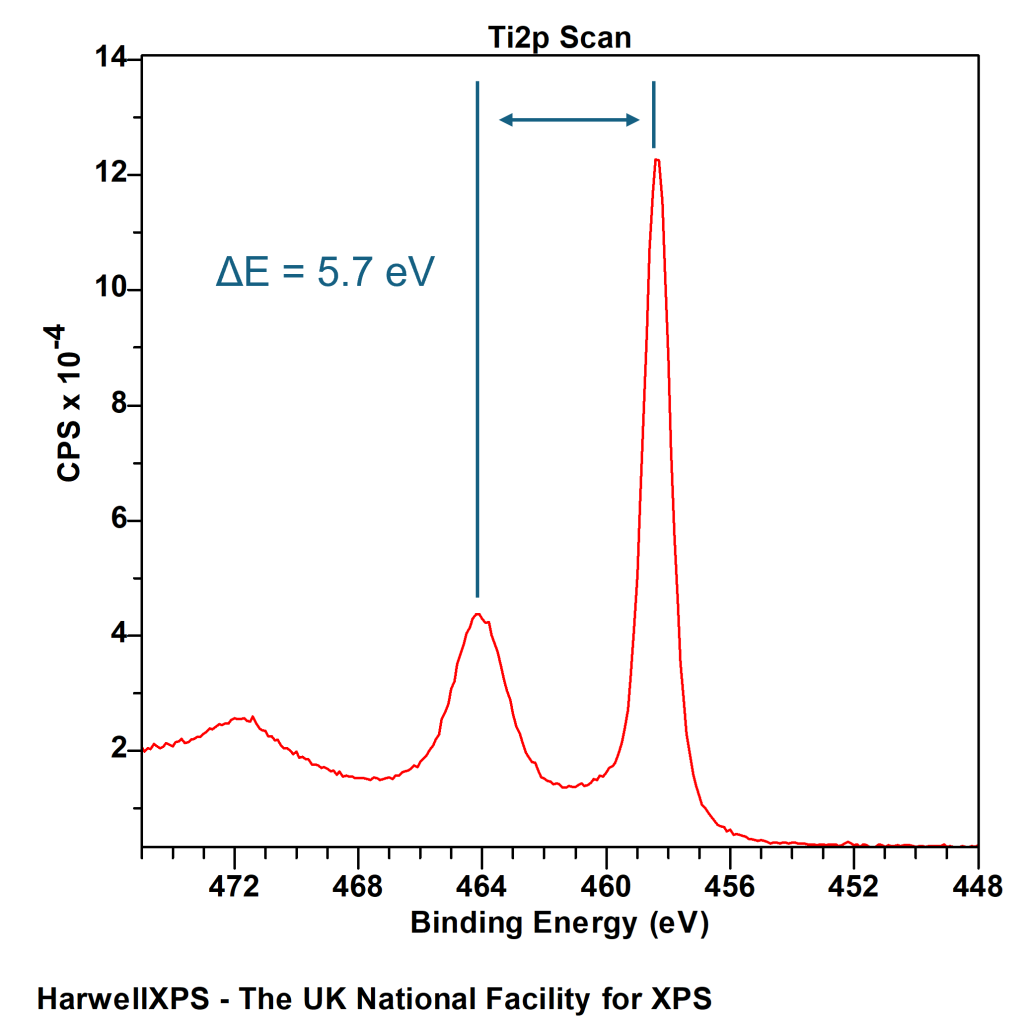

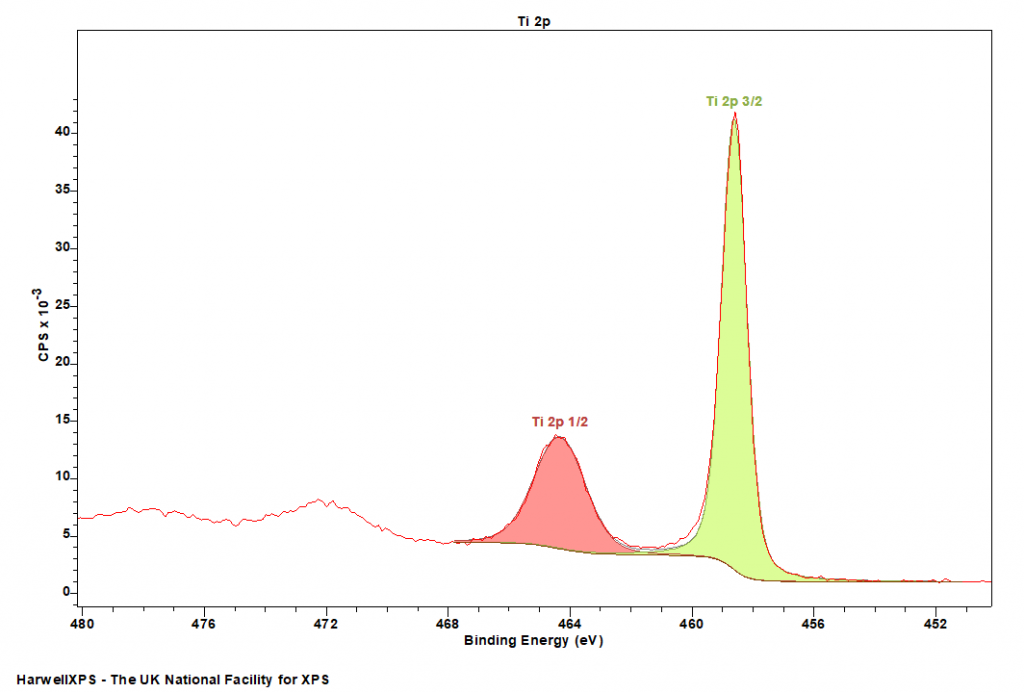

Ti 2p peaks are mostly uncomplicated doublets (Figure 1) with a separation of around 6 eV (see table 1).
The exception to this is titanium nitride (TiN) which exhibits a complex structure including shake-up peaks, bulk and surface plasmons.(2)
References #
- Kumar, S., et al. (2017). “P25@ CoAl layered double hydroxide heterojunction nanocomposites for CO2 photocatalytic reduction.” Applied Catalysis B: Environmental 209: 394-404. Read it online here.
- Jaeger, D. and J. Patscheider (2013). “Single crystalline oxygen-free titanium nitride by XPS.” Surface Science Spectra 20(1): 1-8. Read it online here.
- Badrinarayanan, S., et al. (1989). “XPS studies of nitrogen ion implanted zirconium and titanium.” Journal of Electron Spectroscopy and Related Phenomena 49(3): 303-309. Read it online here.
- Diebold, U. and T. Madey (1996). “TiO2 by XPS.” Surface Science Spectra 4(3): 227-231. Read it online here.
- Gonbeau, D., et al. (1991). “XPS study of thin films of titanium oxysulfides.” Surface science 254(1-3): 81-89. Read it online here.
- Biesinger, Mark C., et al. “Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Sc, Ti, V, Cu and Zn.” Applied surface science 257.3 (2010): 887-898. Read it online here.
