Doublet Separations #

No relevant non-S-orbital emissions

Common Overlaps for C 1s #

K 2p (not to be confused with fluorinate carbons, or pi-pi* shakeup) – Eu 4p – Ru 3d – Tb 4p – Kr 3s – Gd 4p – Os 4d – Ce 4s – Th 5s – Dy 4p – Mg KLL (Al Ka X-rays)

Auger Energies #

Note – these are listed in KINETIC ENERGY

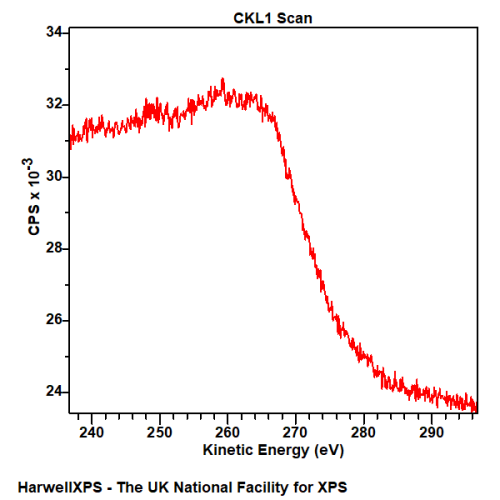

C KLL ≈ 260 eV

Common Binding Energies – C 1s #

Theory and Background #

Carbon analysis by XPS is typically recorded for every experiment, due to the common presence of adventitious carbon contaminant layers. Analysis is performed on the C 1s region, which may overlap with K 2p (only higher BE species) and Ru 3d.

Since carbon peaks are of S-orbitals analysis is often relatively trivial, with large energy separations between carbons of differing functional groups.

Carbon analysis by XPS is typically recorded for every experiment, due to the common presence of adventitious carbon contaminant layers. Analysis is performed on the C 1s region, which may overlap with K 2p (only higher BE species) and Ru 3d.

Since carbon peaks are of S-orbitals analysis is often relatively trivial, with large energy separations between carbons of differing functional groups.

Experimental Advice #

Carbons may be sensitive to sample damage, and as such it is advisable to record and quick C 1s scan before and after any long measurements – in order to check for signs of degradation, or changing environments.

If analysing polymers, it is advisable to clean the adventitious carbon layer using a gas cluster ion beam prior to analysis. The GCIB is capable of cleaning soft materials, such as carbons, without degrading the chemistry, unlike a traditional monotomic ion beam.

Data Analysis Guidance #

Typically carbons may be fit using standard Voight-type lineshapes, and with a Shirley background – though this is one case where a Linear background makes practically little difference.

Below we have a masterclass video from HarwellXPS technical director, Dr. David Morgan.

Polymers #

Historically, XPS has found great use in the polymer community and as such a large database of polymer XPS can be found in the works of Beamson and Briggs especially.⁽¹⁾

Graphene, Graphitic and Conductive Carbons #

Conductive-type carbons will exhibit some form of asymmetry, due to the shake-up processes involved.

Novel 2D carbon materials are incredibly powerful technologies for a number of applications and as such require chemical analysis, often by XPS.

The choice of energy calibration for pure carbon samples is not an easy one, though peak shape is an early indicator of graphitic carbon vs other forms since graphitic carbon possesses an asymmetric peak shape with a lower FWHM than that of hydrocarbons or similar.

Aligning the major carbon peak to a typical binding energy once you have determined the character allows facile addition of additional components.

Below we have a masterclass video from HarwellXPS technical director, Dr. David Morgan.

d-Parameter for sp2/sp3 content #

Further evidence for sp³ vs sp² graphitic character may be obtained from the C KLL auger, specifically the differentiated spectra. Following differentiation, evaluation of the energy separation between the minima and maxima permits determination of a so-called ‘d-parameter’ which may be used to assess the carbon local environment.

Below we have a masterclass video from HarwellXPS technical director, Dr. David Morgan.

Carbon Nitrides #

Graphitic carbon nitrides (g-C₃N₄) is a unique family of materials commonly found in photocatalytic applications. The deconvolution of this structure is similar in many ways to pure graphitic carbon, but with some specific additional peaks. It may be difficult to energy calibrate such spectra to the lowest binding energy peak, since the majority of the spectra will be dominated by C-N-C peaks, so calibrating to this peak at 288.1 eV (figure 4).⁽⁷⁾

Inorganics (Carbonates) #

Carbonates are found at high binding energies (~289.5 ± 0.6 eV), with the exception being that of silver carbonate which may be found ~288.5 eV.

Reference Datasets #

Coming soon
